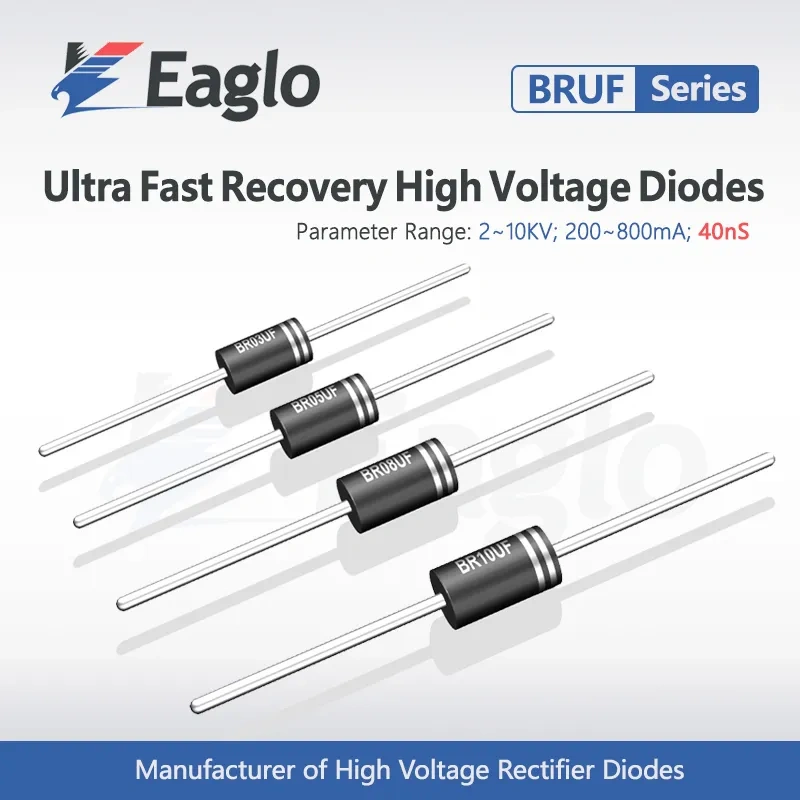

Name: BRUF Series Ultra Fast Recovery High Voltage Diodes
Brand: Eaglo-High Voltage Rectifier Diode Manufacturer
SKU: BR02UF
Price: 700 USD
Availability: InStock

SKU: BR02UF

0.0 (0)

0 Sold

Parameter Range: 2~10KV; 200~800mA; 40nS

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

起订量:

100
Vr:

BR02UF

BR03UF

BR04UF

BR05UF

BR06UF

BR07UF

BR08UF

BR09UF

BR10UF

Quantity:

Add to Favorites (0)

1/1

Description

**BRUF Series Ultra Fast Recovery High Voltage Diodes (2~10KV; 200~800mA; 70nS)**
Type	Vrrm（KV）	Io(mA)	Trr（nS）	Ifsm（A）	Vfm（V）	Irrm1/Irrm2(μA)
	Ta=25℃ Ir=2μA	Ta=25℃		tp=8.3ms 25℃		@Ta=25℃/100℃
BR02UF	2	800	40	30	4.2	2/20
BR03UF	3	800	40	30	6.3	2/20
BR04UF	4	550	40	30	8.4	2/20
BR05UF	5	550	40	30	10.5	2/20
BR06UF	6	450	40	30	12.6	2/20
BR07UF	7	450	40	30	14.7	2/20
BR08UF	8	350	40	30	16.8	2/20
BR09UF	9	250	40	30	18.9	2/20
BR10UF	10	200	40	30	21.0	2/20

工作环境温度 Operating Ambient Temperature -40～+125℃; 存贮温度 Storage Temperature -40～+125℃;
