Home > High Voltage Diode > 2CL2 Series Power Frequency High-Voltage Rectifier Diode
  • 2CL2 Series Power Frequency High-Voltage Rectifier Diode
1/1
  • 2CL2 Series Power Frequency High-Voltage Rectifier Diode
Share:

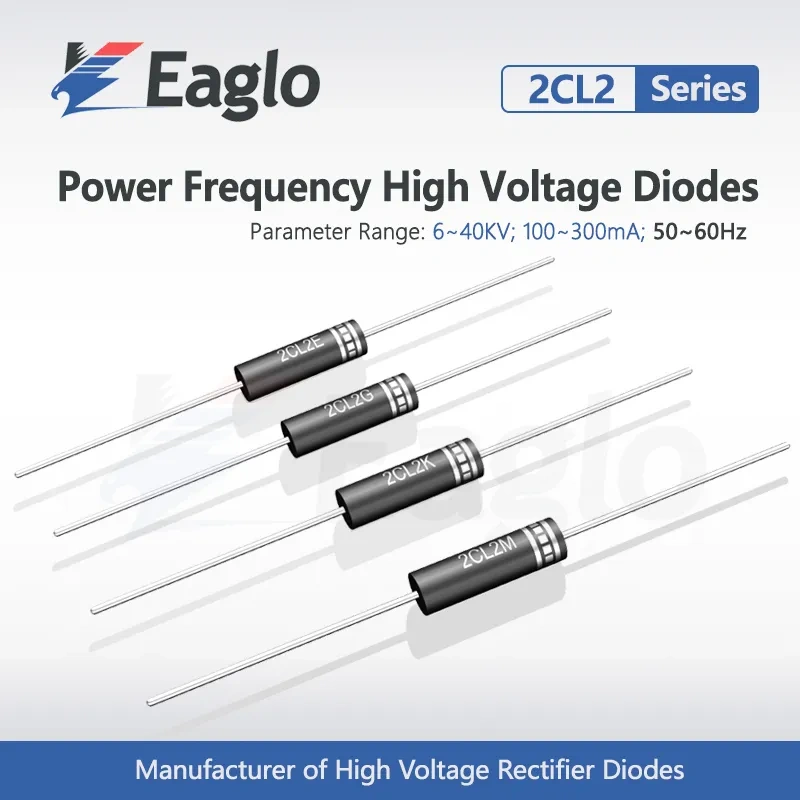

2CL2 Series Power Frequency High-Voltage Rectifier Diode

SKU:
0.0 (0)
0 Sold
（6~40KV；100~300mA；50~60Hz)
2CL2系列高压二极管： 产品特点： 1、独特的层状单元结构芯片设计。 2、低阻低功耗工艺。 3、击穿电压保护特性，耐电压能力强。 4、卓越的脉动浪涌电流冲击性能。 5、轴向引线，易焊性好。
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • 起订量:
    100pcs
  • 型号参数:
    2CL2E-6KV-300mA
    2CL2F-8KV-300mA
    2CL2G-10KV-300mA
    2CL2H-12KV-200mA
    2CL2J-15KV-200mA
    2CL2K-18KV-200mA
    2CL2M-20KV-200mA
    2CL2N-25KV-150mA
    2CL2P-30KV-150mA
    2CL2R-35KV-100mA
    2CL2W-40KV-100mA
Quantity:
Add to Favorites (0)
  • 2CL2 Series Power Frequency High-Voltage Rectifier Diode
  • 2CL2 Series Power Frequency High-Voltage Rectifier Diode
1/1
  • 2CL2 Series Power Frequency High-Voltage Rectifier Diode
  • Description

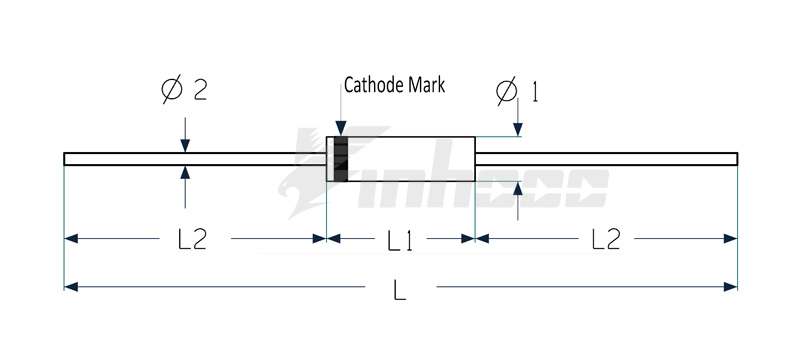

尺寸表  （单位:mm/inch）
管体直径（Φ1） 管体长 (L1） 引线直径（Φ2） 引线长 (L2) 总长(L)
4.5 15 0.8 26 67

25.4 mm = 1 inch







产品家族参数预览

2CL2系列高压二极管 (3-35)KV, (100-200)mA, 50Hz.
Type Vrrm（KV） Io(mA) Trr（nS） Ifsm（A） Vfm（V） Irrm1/Irrm2(μA) PDF
  Ta=25℃ Ir=2μA Ta=25℃   tp=8.3ms 25℃   @Ta=25℃/100℃
2CL2C 3 200 -- 20 3.5 2/200
2CL2D 4 200 -- 20 4.5 2/200
2CL2E 6 200 -- 20 7 2/200
2CL2F 8 100 -- 10 9 2/200
2CL2G 10 100 -- 10 11 2/200
2CL2H 12 100 -- 10 13 2/200
2CL2J 15 100 -- 10 17 2/200
2CL2K 10 150 -- 15 11 2/200
2CL2L 15 150 -- 15 17 2/200
2CL2M 20 100 -- 10 24 2/200
2CL2P 30 100 -- 10 40 2/200
2CL2R 35 100 -- 10 50 2/200
2CL2V 40 100 -- 10 60 2/200
2CL2W 45 100 -- 10 70 2/200
工作环境温度 Operating Ambient Temperature -40～+125℃; 存贮温度 Storage Temperature -40～+125℃;
