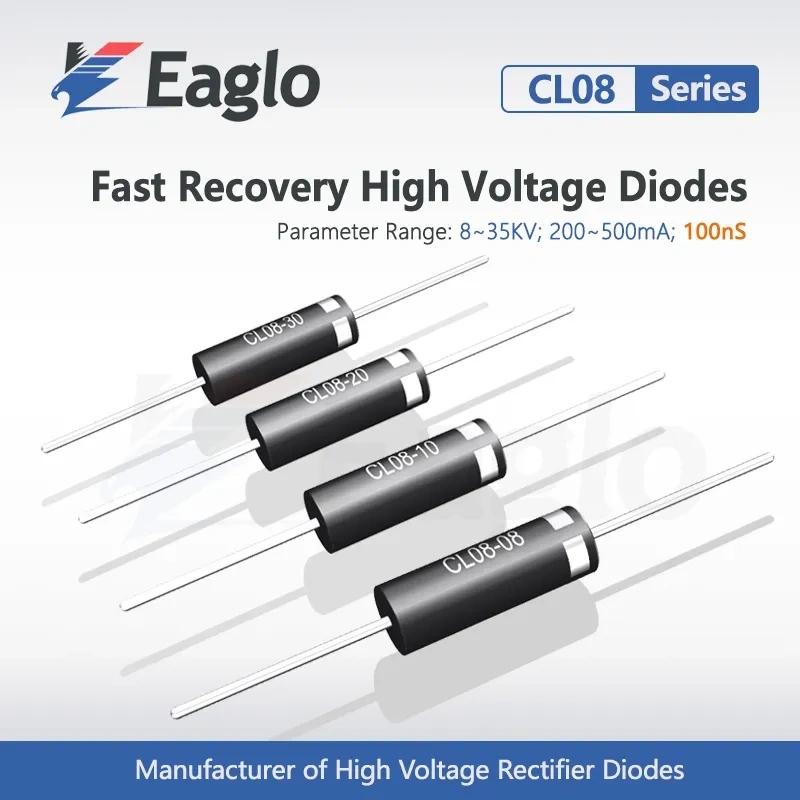

Name: CL08 Series Fast Recovery High Voltage Diodes
Brand: Eaglo-High Voltage Rectifier Diode Manufacturer
Price: 500 USD
Availability: InStock

0.0 (0)

0 Sold

（8~35KV、200~500mA、100nS)
CL系列高压整流二极管产品特点： 1、独特的层状单元结构芯片设计。 2、低阻低功耗工艺。 3、击穿电压保护特性，耐电压能力强。 4、卓越的脉动浪涌电流冲击性能。 5、轴向引线，易焊性好。

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

起订量:

100pcs
型号参数:

CL08-08

CL08-10

CL08-12

CL08-15

CL08-18

CL08-20

CL08-25

CL08-30

CL08-35

Quantity:

Add to Favorites (0)

1/1

Description

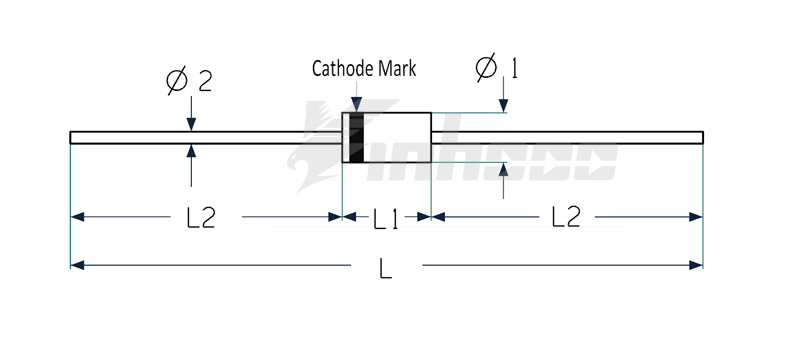

**尺寸表（单位:mm/inch）**
管体直径（Φ1）	管体长 (L1）	引线直径（Φ2）	引线长 (L2)	总长(L)
5.0	9	1.2	24	57
25.4 mm = 1 inch

产品家族参数预览

**2CL2系列高压二极管 (3-35)KV, (100-200)mA, 50Hz.**
Type	Vrrm（KV）	Io(mA)	Trr（nS）	Ifsm（A）	Vfm（V）	Irrm1/Irrm2(μA)	PDF
	Ta=25℃ Ir=2μA	Ta=25℃		tp=8.3ms 25℃		@Ta=25℃/100℃
CL08	2	1000	--	150	2.4	2/200
CL08	3	1000	--	150	3.6	2/200
CL08	4	800	--	120	4.8	2/200
CL08	5	800	--	120	6.0	2/200
CL08	6	500	--	100	7.5	2/200
CL08	8	500	--	100	10.0	2/200
CL08	10	500	--	100	13.0	2/200
CL08	12	300	--	60	16.0	2/200
CL08	15	200	--	50	20.0	2/200


工作环境温度 Operating Ambient Temperature -40～+150℃; 存贮温度 Storage Temperature -40～+150℃;
