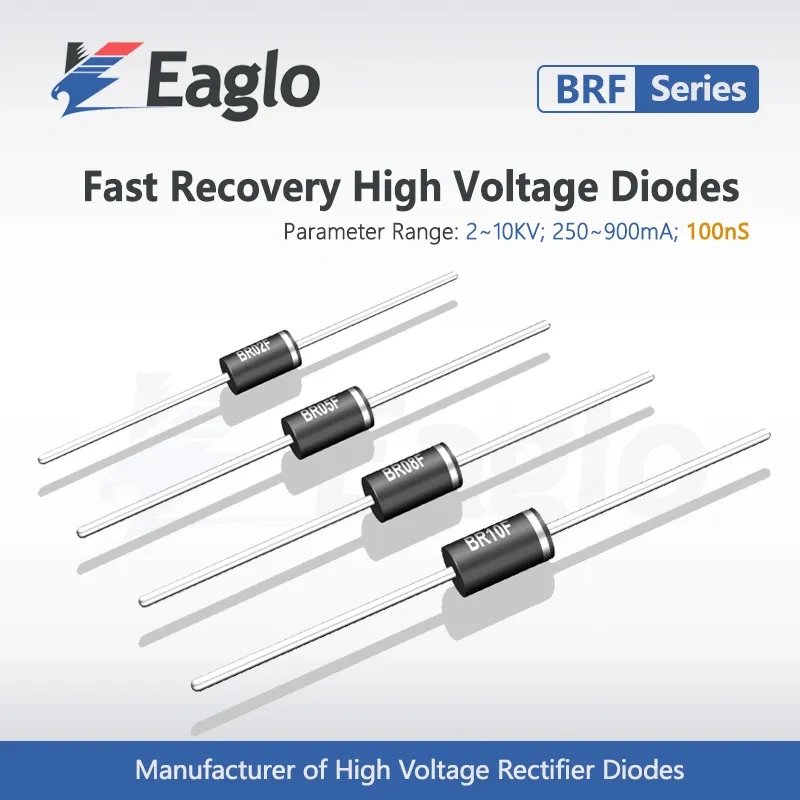

Name: BRF Series Fast Recovery High Voltage Diodes
Brand: Eaglo-High Voltage Rectifier Diode Manufacturer
SKU: BR02F
Price: 700 USD
Availability: InStock

SKU: BR02F

0.0 (0)

0 Sold

Parameter Range: 2~10KV; 250~900mA; 100nS

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

起订量:

100
Vr:

BR02

BR03

BR04

BR05

BR06

BR07

BR08

BR09

BR10

Quantity:

Add to Favorites (0)

1/1

Description

产品家族参数预览

**BRF Series Power Frequency High Voltage Diodes (2~10KV; 250~900mA; 100nS)**
Type	Vrrm（KV）	Io(mA)	Trr（nS）	Ifsm（A）	Vfm（V）	Irrm1/Irrm2(μA)
	Ta=25℃ Ir=2μA	Ta=25℃		tp=8.3ms 25℃		@Ta=25℃/100℃
BR02	6	100	100	6	7.8	2/200
BR03	6	300	100	10	7.8	2/200
PFJ8A	8	100	100	6	10.5	2/200
PFJ8C	8	300	100	10	10.5	2/200
PFJ12A	12	100	100	6	16	2/200
PFJ12C	12	300	100	10	16	2/200
PFJ15A	15	100	100	6	20	2/200
PFJ15C	15	300	100	10	20	2/200
PFJ20A	20	100	100	6	30	2/200
PFJ20C	20	300	100	10	30	2/200

工作环境温度 Operating Ambient Temperature -40～+125℃; 存贮温度 Storage Temperature -40～+125℃;
